HD14

HD14

NEP | Australia

HD14 is a powerful HD/4K, double expanding side trailer with 62 square meters of internal space.

Vehicle-Specific Information
  • Dimensions: Truck - 15m long x 2.5m wide x 4.3m high; Expander - 12.1m long x 1.1m wide
Production
  • Sony 4 ME XVS8000 1080P 4K/IP Vision Switcher
  • 112 Inputs and 48 Outputs
Communications
  • Reidel Intercom System - 192 Ports
  • 8 Partyline Beltpack Systems
  • 4 UHF Duplex Base Stations
  • 2 Telephone Hybrid
Cameras
  • Up to 28 Cameras with 7 CCU Positions and TD
  • Expandable Sony Ethernet Camera Control
  • 8 Specialty Camera Positions with Expansion
Support Equipment
  • Imagine
  • HD video - 518 inputs x 544 outputs
  • Equipped with LAWO VSM Control & Monitoring System
  • ‍11 Multi Viewers, 32 x 6 each
Audio
  • LAWO Mc56 Mk2
  • 80 Faders, 6 layers
  • Over 672 DSP Channels
  • MADI Interfacing
  • Dallis - Fibre Remote Stage Box Interfacing
  • 1 Spot On Replay System
Record & Playback
  • Up to 10 EVS XT3 12 Channel 10 GB
  • 1 EVS X-File[3]
  • 1 EVS Xhub[3]
  • HD/DVD & USB Recorders
Features & Highlights
  • Sony XVS8000

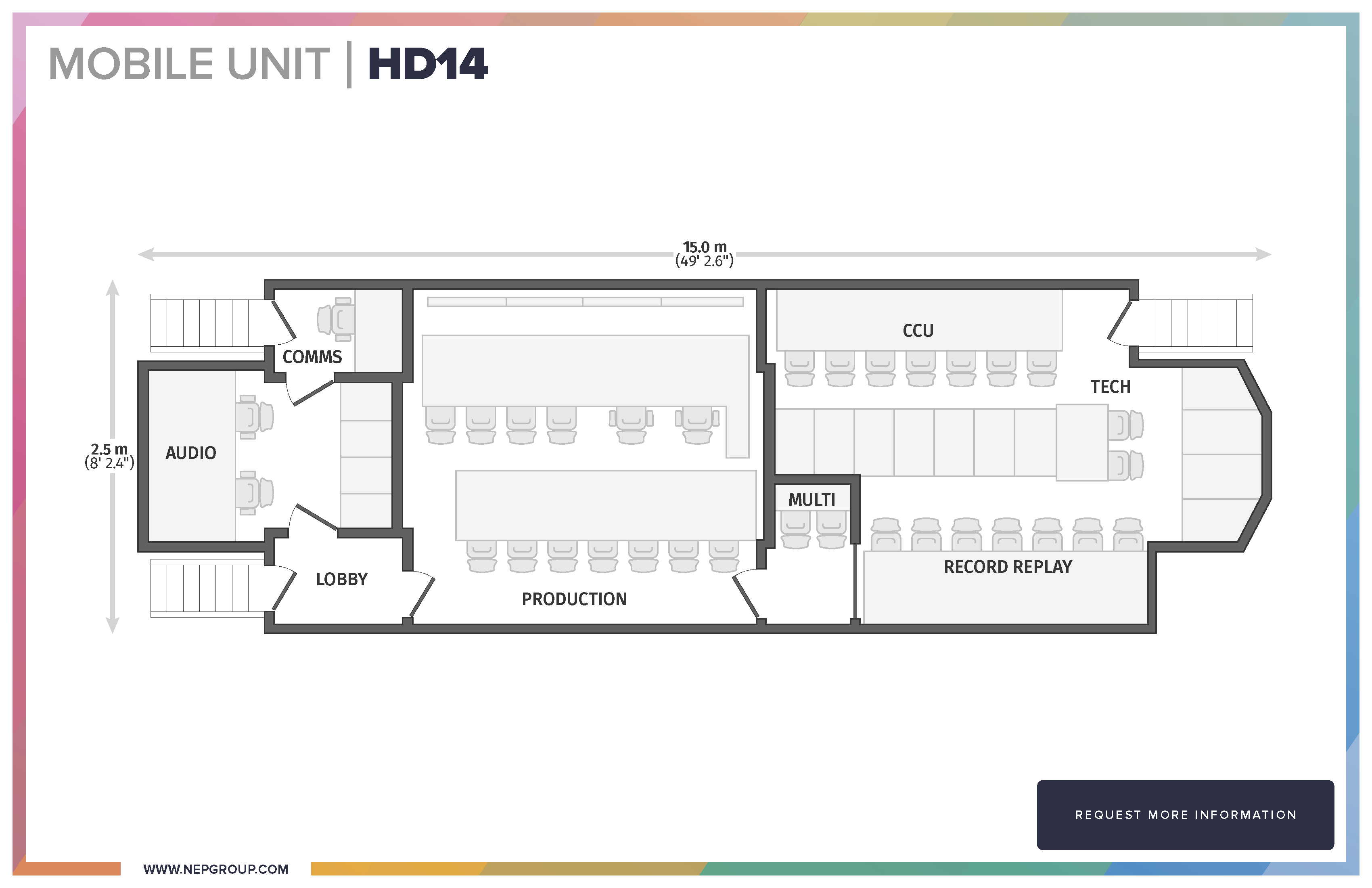

HD 14 Floorplan
