Mechanical

Non expanded road travel dimensions – 15.0m long, 2.5m wide, 4.3m high
Double Expander fully deployed dimensions – 17.9m long, 4.7m wide, 4.3m high

Electrical

2 x 415V, 80A Marechal DS6 inlets (Technical + Utilities) – Main Supply
2 x 415V, 80A Marechal DS6 inlets (Technical + Utilities) – Backup Generator Supply
6 x Eaton 11kVA UPS’ – Technical Power Battery Backup
Technical & Utility 240V AU Outlets

Native SMPTE 2110 4K Environment

Production

2 Tier Production Area

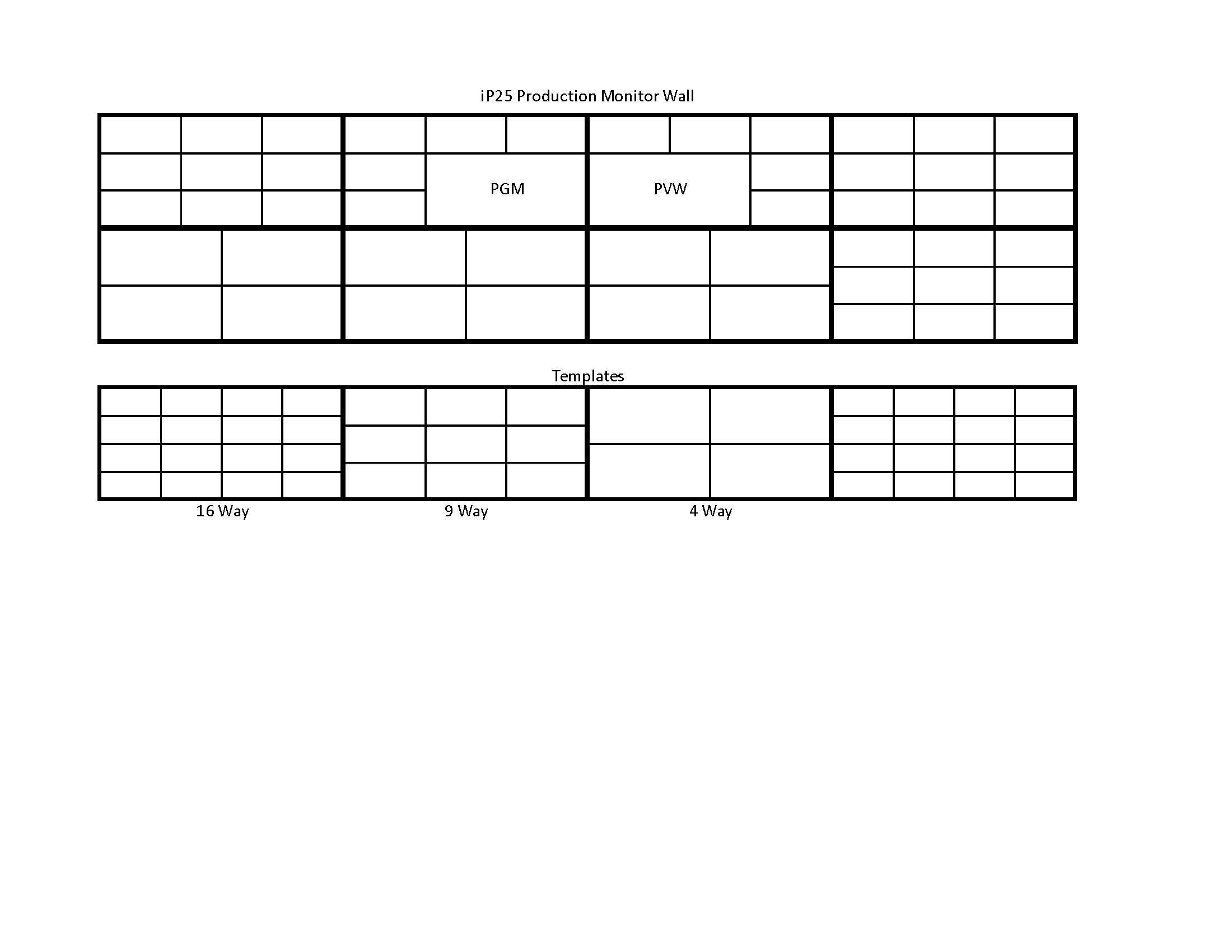

8 x 49” Mulitiview Monitors (Main Wall)
7 x 24” Monitors (Rear bench)
Sony XVS9000 Vision Mixer, 5ME, 80 x 4K Inputs (160 x 1080P) & 40 x 4K Outputs (80 x 1080P)
5 Row x 36 XPT Control surface
4 Channels 4K 3D DME
10 Full keyers + 10 Sub keyers
Key Freeze

Audio

Lawo Mc256 MKIII Audio Console
80 Physical Faders, 6 banks each with 2 layers
Full Redundant UHD Cores with 1024 DSP channels (Up to 832 inputs with A/B input, up to 128 aux buses, up to 128 groups, up to 128 main sums, up to 96 track buses, 32 Automix groups)
96 surround channels, 128 VCA groups with metering, 256 GP channels
Surround formats: DTS & Dolby ® Digital 5.1, Dolby ® Pro-logic 4.0, DTS ES & Dolby ® EX 6.1, SDDS 7.1, DTS-HD 7.1, diversepanning characteristics, surround aux bus
Audio-follow-Video with 128 events,
5 x Stage 64, IP External I/O Stageboxes
2 x Stage 80, IP Internal I/O Stageboxes
MADI 6 interface
Genelec SAM Surround Audio Monitoring
Spot On Audio Replay system
Waves FX Server and Backup AMU

‍

Communications

Riedel Artist 1024 Talkback System
256 Port
RSP1232 2RU & RSP1216 1RU Smart Panels
15 x Bolero Beltpacks
PSTN Phone Hybrids
4 x Hytera Remote UHF Talkback base stations

Replay

8 x EVS XT VIA 12 Channel Servers
1 x EVS XS VIA 6 Channel Spotbox
EVS XFile, XHUB VIA, IP Director

Cameras

20 x Sony HDC3500 IP Cameras
4 x Sony HDC5500 HFR 8x IP Cameras
4 x Sony BRCX1000 POV Cameras
2 x Sony PXW-Z450 Camcorder/Eclipse Radio Camera System
4 x Specialty NEP POV mini Cameras

Routing

NEP’s TFC combined broadcast and software defined networking control
Full Cisco Red/Blue Network Architecture
Lawo V_Matrix Core Processing with 28 x C100 Processing Cards (12 of which are dedicated Distributed Multi-View cards, providing 44 x DMV Outputs)
Extensive Riedel EM Virtu & Fusion Encapsulation/De-Encapsulation

‍
